 End Clamps
SFUSA’s end clamp design securely fastens the top and bottom edges of a column of solar panels to the SF Rail. Solar Foundations’ end clamps are engineered for each specific module frame thickness to ensure strength and safety. Each end clamp size has unique markings to permit easy identification. We keep a large supply of our timesaving clamps in stock at all times, accommodating a comprehensive range of frame heights from 30 to 51 mm.
|
 Mid Clamps
The SFUSA mid clamp fastens two adjoining solar panels in a column of solar panels to the SF rail. Our sleek design with multiple serrations increases the holding power of the modules to our SF Rails. The incorporated built-in panel spacing bar reduces panel alignment time while providing consistent panel gap spacing. Our engineered 0.25” panel gap spacing provides a cleaner look than many of our competitors wider mid clamps.
|
 T-Head Bolts
For ease and greater speed in assembly, our mid clamps utilize custom T-head bolts as a standard feature, unlike other manufacturers who offer them as an upgrade. Our T-head bolt is designed to quickly and securely fasten solar modules to our SF Rails. SFUSA’s T-Head design includes an indicator at the threaded end of the bolt to assist the installer in verifying the bolt has been properly engaged into the SF Rail. This alignment indicator remains visible after solar panel installation allowing for fast and simple compliance verification during system commissioning. We manufacture our components to last using series 300 stainless steel bolts that handle the needs of highly corrosive environmental conditions.
|
|
Read the Technical Datasheets
Take a closer look at the End Clamp and Mid Clamp datasheets for material specifications, component descriptions, assembly directions and more.
|
|
View the Assembled Components
|

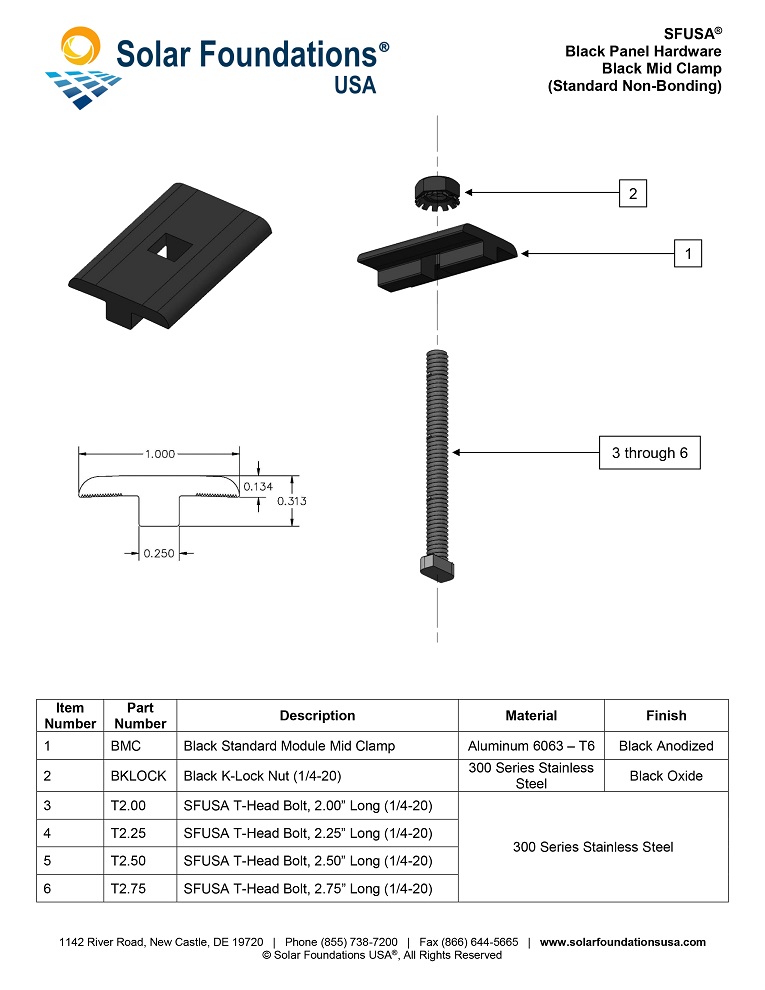

 Black Panel Hardware
In addition to our standard mill finish aluminum, Solar Foundations’ End Clamps and Mid Clamps are available in a Black Anodized finish along with SFUSA’s stainless steel K-Lock Nuts available in Black Oxide finish for protection against corrosion and sleek appearance. Our black anodized end clamps accommodate a comprehensive range of frame heights from 30 to 47 mm. SFUSA’s black panel hardware is extremely resistant to fading in high UV environments and offers long-lasting resistance to abrasion.
|
|
Read the Technical Datasheets
Take a closer look at the black End Clamp and Mid Clamp datasheets for material specifications, component descriptions, assembly guidance and more.
|
 |
|
Black WEEB Bonding
|
|
